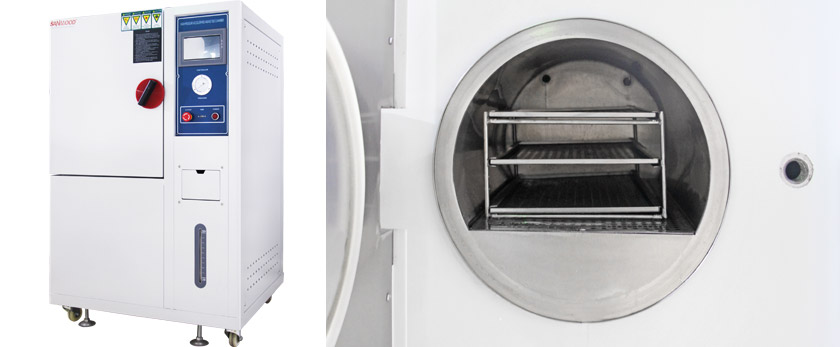

PCT High Pressure Accelerated Aging Test Chamber for Electronics
PCT - High Pressure Accelerated Aging Test Chamber, also named as Pressure Cooker Test, is widely applied to aviation, aerospace, IT, electronics and other industries to determine the environmental adaptability and reliability test of instruments, electrical products, materials, parts and equipment under the single or simultaneous action of high pressure, high temperature, high humidity, and to measure the electrical performance parameters of the test specimens.
PCT chamber features:
1. The inner chamber material is stainless steel and mirror-polished
2. The saturated humidity, high temperature, high pressure tests to check products environmental reliability and durability.
3. Automatic adding water function, and automatic filling water upon the water short storage while testing.
4. Automatic operation to test process finished, easy to use.
5. Self-develop temperature controller, touch screen. Test parameters setting and display clearly.
6. Silicone rubber sealing around the inner chamber, high temperature resistance and airtightness.
PCT chamber specification:
| Model | SM-PCT-250-A | SM-PCT-300-A | SM-PCT-400-A |
| Temperature | Temperature control range | 105.0℃～142.9℃ (A:132℃; B:142.9℃) |
| | Pressure control range | normal pressure +0.2～2.0kg/cm2 |
| | Temperature fluctuation | ±2.0℃ |
| | Temperature uniformity | ±3.0℃ |
| Humidity | Humidity control range | 100.0%RH |
| | Humidity fluctuation | ±2.0% RH |
| | Humidity uniformity | ±5.0％RH |
Material /
components | Internal material | Stainess steel(SUS316) |
| | External material | Stainess steel(SUS304) |
| Size | Inner size(mm) | Φ25*450(D) | Φ30*450(D) | Φ40*500(D) |
| | Outer size(mm)W×D×H | 560*105*1250 | 660*105*1250 | 760*1150*1350 |
| Operating ambient temperature | +5 ~ 35℃ |
| Controller | SANWOOD touch screen controller |
