Temperature Humidity Corrosion Test Chamber , Salt Fog Chamber For Laboratory

Guangdong Sanwood Technology Co.,Ltd

Temperature Humidity Corrosion Test Chamber , Salt Fog Chamber For Laboratory

Brand Name : SANWOOD

Model Number : SM-F

Certification : CE AND ISO

Place of Origin : GUANGDONG,CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 set per month

Delivery Time : 4-5 weeks

Packaging Details : Wooden case

Spraying mode : Continuous,intermittent spraying

Heater : Corrosion resistance U type titanium tube

Spray quantity : 1.0~2.0ml/80cm2/h

Compressed air pressure : 1.00±0.01kgf/cm2

PH : 6.5~7.2 3.0~3.2

Operating ambient temperature, humidity : <35℃,<85%RH

Contact Now

Laboratory salt fog temperature humidity cyclic corrosion Test equipments

Product Application for accelerated aging salt spray test equipment

Lenpure Salt Spray Test Chamber provides the best possible laboratory simulation of natural oceanic corrosion.

Corrosion tests performed in our chamber including:
Neutral Salt Spray Test(NSS);
Acetic Acid Salt Spray Test(ASS);
Copper Accelerated Acetic Acid Salt Spray Test (CASS);

Research indicates that test results are similar to outdoors in resulting structure, morphology, and relative corrosion rates.
Specially custom-designed chambers are available for accelerated aging salt spray test equipment

Applied to standards as below:
ASTM B117/IEC60068-2-11/ISO9227/ MIL-STD-202/ASTM G85 A1/ASTM B368/ JISZ2371/ Fiat 50180/ DIN50021 etc.

Model SM-F-120CA SM-F-160CA SM-F-200CA SM-F-180CA

SM-F-8000CA

(piece together)

Temperature range -20℃~80℃ (A:25℃;B:0℃;C:-20℃;) -70℃~180℃ -40℃~80℃
Humidity range 20%RH~98%RH
Temperature uniformity ±2.0℃
Humidity uniformity ±3.0%RH
Inner size W 1200 1600 2000 1800 2000
D 850 1000 1200 1000 2000
H 500 550 600 1000 2000
Outer size W 2200 2600 3000 2800 3200
D 1200 1450 1650 1450 2350
H 1450 1550 1600 2150 2800
Testing room volume(L) 480L 800L 1440L 1800L 8000L
Brine tank capacity(L) 15 25 40 80L 80L
Max current(A) 15 18 22 45 65
Max Consumption Power(KW) 3.5 5 7 17.5 23
Power supply AC220V,50HZ AC380V,50HZ
Operating ambient temperature, <35℃,<85%RH
humidity
Testing room temperature Brine test method(NSS ACSS)35℃±1℃/Erosion-resistant testing method (CASS)50℃±1℃
Pressure Pot Temperature Brine test method(NSS ACSS)47℃±1℃/Erosion-resistant testing method(CASS)63℃±1℃
Brine solubility 5% Sodium Chloride Solution or add 0.26 grams copper dichloride in the 5% Sodium
Chloride Solution per liter (CuCl2 2H2O)
PH 6.5~7.2 3.0~3.2
Compressed air pressure 1.00±0.01kgf/cm2
Spray quantity 1.0~2.0ml/80cm2/h (Collect 16 hours at least, take their average)
Inside and outside material Imported corrosion resistant, anti-aging, SUS316 stainless steel
high strength PVC board
Heater Corrosion resistance U type titanium tube
Temperature controller LED digital display temperature controller, touch screen controller
Spraying mode Continuous,intermittent spraying
Defrosting device No Yes
Safety device Over temperature protection switch, leakage protection, status warning lamp

Product Catalog:

Salt Spraying Chamber.pdf


Product Tags:

salt spray test chamber



salt fog test chamber


Wholesale Temperature Humidity Corrosion Test Chamber , Salt Fog Chamber For Laboratory from china suppliers

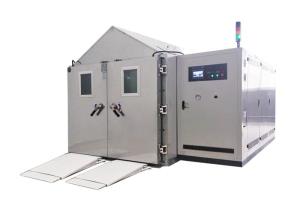

Temperature Humidity Corrosion Test Chamber , Salt Fog Chamber For Laboratory Images
